The output shaft is where the Panasonic A6 series of AC servo motor assembled to the reducer. Here in this chapter you'll have a detailed sheet of the permissible load of the Panasonic A6 series of AC Servo motor at output shaft.
Unit: N (1 kgf=9.8N)
| Motor series | Motor output | At assembly | During running | |||
|---|---|---|---|---|---|---|

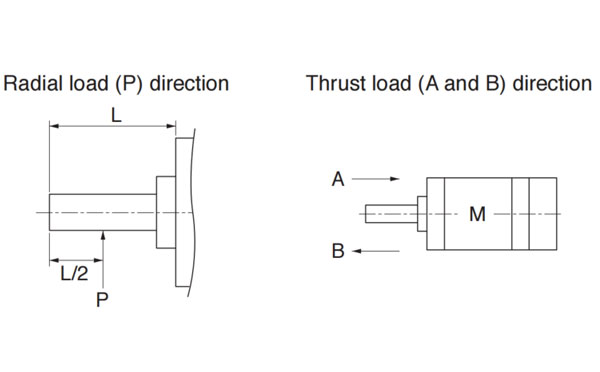

| Radial thrust | Thrust load | Radial thrust | Thrust load A and B-direction | |||
| A-direction | B-direction | |||||
| MSMF | 50W, 100W | 147 | 88 | 117.6 | 68.6 | 58.8 |
| 200W, 400W | 392 | 147 | 196 | 245 | 98 | |
| 75W, 1.0kW (☐80) | 686 | 294 | 392 | 392 | 147 | |
| 1.0kW(☐100) to 3.0kW | 980 | 588 | 686 | 490 | 196 | |
| 4.0kW, 5.0kW | 784 | 343 | ||||
| MQMF | 100W | 147 | 88 | 117.6 | 68.6 | 58.8 |
| 200W, 400W | 392 | 147 | 196 | 245 | 98 | |
| MDMF | 1.0kW to 2.0kW | 980 | 588 | 686 | 490 | 196 |
| 3.0kW | 784 | 343 | ||||
| 4.0kW, 5.0kW | 1666 | 784 | 980 | |||
| MGMF | 850W to 1.8kW | 980 | 588 | 686 | 686 | 196 |
| 2.4kW | 1666 | 784 | 980 | 1176 | 490 | |
| 2.9kW | ||||||
| 4.4kW | 1470 | |||||
| MHMF | 50W | 147 | 88 | 117.6 | 68.6 | 49 |
| 100W | 58.8 | |||||
| 200W, 400W | 392 | 147 | 196 | 245 | 98 | |
| 750W, 1.0kW (☐80) | 686 | 294 | 392 | 392 | 147 | |
| 1.0kW(☐130), 1.5kW | 980 | 588 | 686 | 490 | 196 | |
| 2.0kW to 5.0kW | 1666 | 784 | 980 | 784 | 343 | |

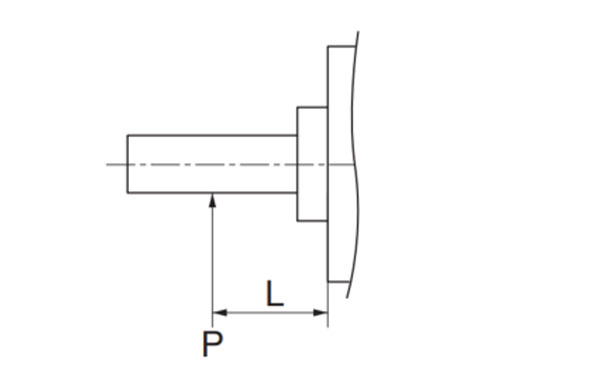

Note → When the load point varies, calculate the permissible radial load, P (N) from the distance of the load point, L (mm) from the mounting flange based on the formula of the right table, and make it smaller than the calculated result.
| Motor series | Motor output | Formula of Load and load point relation |
|---|---|---|
| MSMF | 50W | P=3533/(L+39) |
| 100W | P=4905/(L+59) | |
| 200W | P=14945/(L+46) | |
| 400W | P=19723/(L+66.5) | |
| 750W | P=37044/(L+77) | |
| 1.0kW(☐80) | P=43198/(L+92.7) | |
| 1.0kW(☐100)~3.0kW | P=20090/(L+13.5) | |
| MQMF | 100W | P=3420/(L+28.8) |
| 200W | P=14639/(L+36) | |
| 400W | P=17579/(L+48) | |
| MDMF | 1.0kW~2.0kW | P=19110/(L+11.5) |
| 3.0kW | P=34496/(L+11.5) | |
| 4.0kW, 5.0kW | P=42336/(L+19) |
| Motor Series | Motor output | Formula of Load and load point relation |
|---|---|---|
| MGMF | 850W~1.8kW | P=26754/(L+11.5) |
| 2.4kW | P=63504/(L+19) | |
| 2.9kW | P=63504/(L+19) | |
| 4.4kW | P=79380/(L+19) | |
| MHMF | 50W | P=3240/(L+29) |
| 100W | P=4380/(L+43) | |
| 200W | P=15741/(L+41) | |
| 400W | P=20176/(L+59) | |
| 750W | P=36005/(L+66) | |
| 1.0kW(☐80) | P=41101/(L+79) | |
| 1.0kW(☐130), 1.5kW | P=22785/(L+11.5) | |
| 2.0kW~5.0kW | P=46256/(L+19) |
