14. How to Use the Front Panel — Monitor Mode (EXECUTION display 17-27)

HIGH SPEED IML ROBOT

Keywords:Panasonic A6 Servo Installation Instruction, Panasonic A6 Driver, Panasonic A6 Series Servo Motor Manual

14. How to Use the Front Panel — Monitor Mode (EXECUTION display 17-27)

Abstract

To change the monitor display setting, select the display option to be changed from " SELECTION display", and press S to change to " EXECUTION display". After completion of changing, press S to return to the selection display.

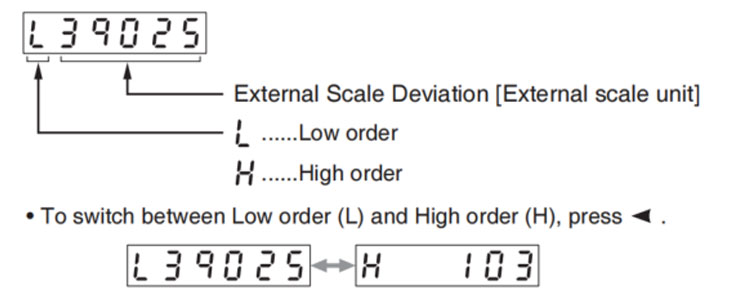

(17) Display of External Scale Deviation [External Scale Unit]

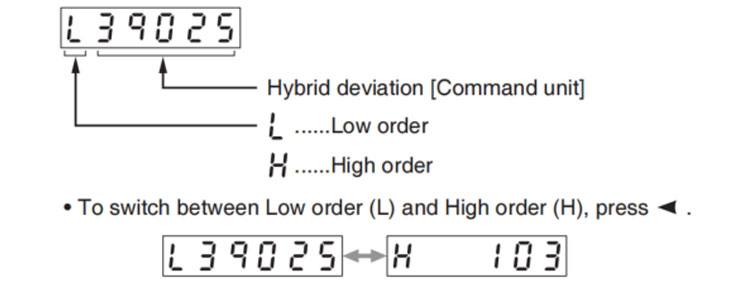

(18) Display of hybrid deviation [Command unit]

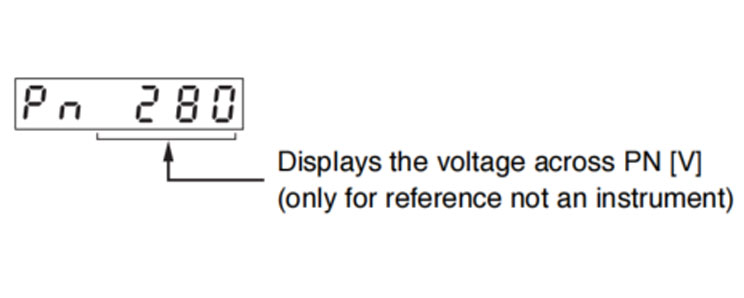

(19) Display of Voltage across PN[V]

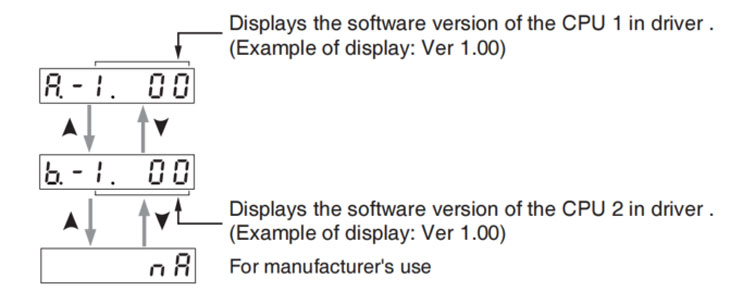

(20) Display of Software Version

(21) Display of driver serial number

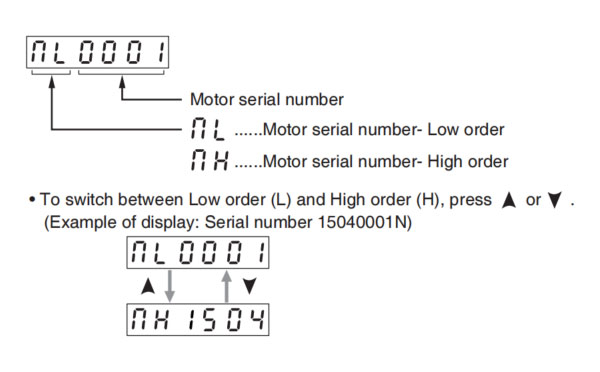

(22) Display of motor serial number

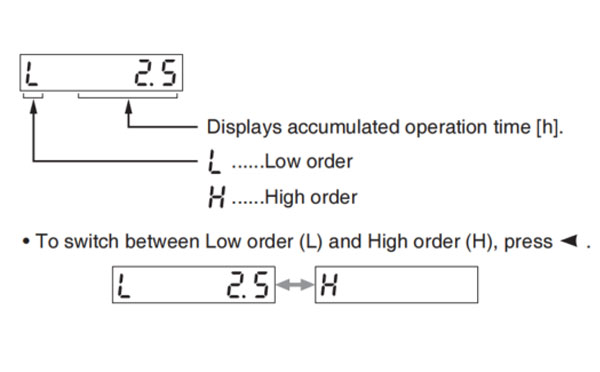

(23) Display of accumulated operation time

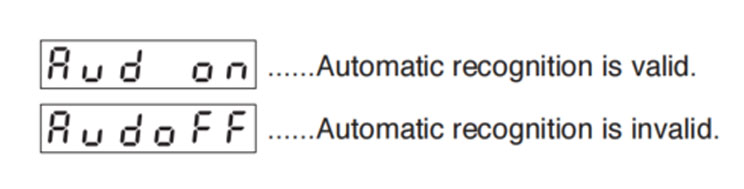

(24) Automatic Motor Recognizing Function

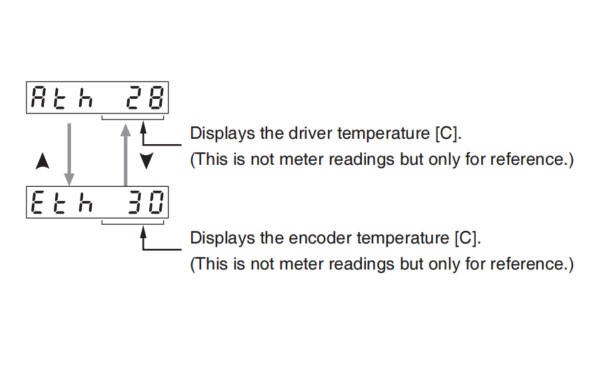

(25) Display of temperature

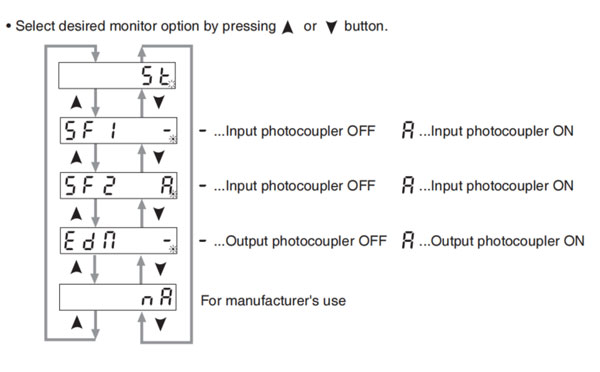

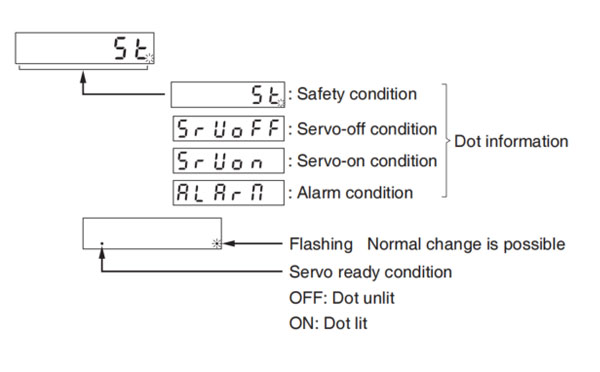

(26) Display of safety condition monitor

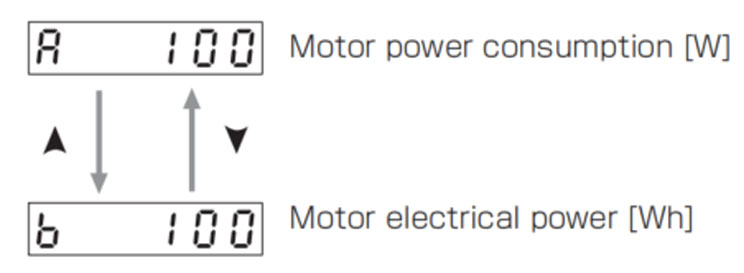

(27) Motor power consumption

Precuations
If the monitor data is displayed with lower (L) and higher (H), displays the front panel are as follows.

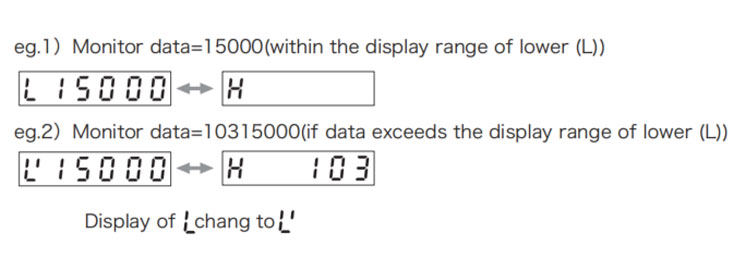

Example 1) Monitor data = 15000 (within the display range of lower (L)).
