14. How to Use the Front Panel — Monitor Mode (SELECTION display)

HIGH SPEED IML ROBOT

Keywords:Panasonic A6 Servo Installation Instruction, Panasonic A6 Driver, Panasonic A6 Series Servo Motor Manual

14. How to Use the Front Panel — Monitor Mode (SELECTION display)

Abstract

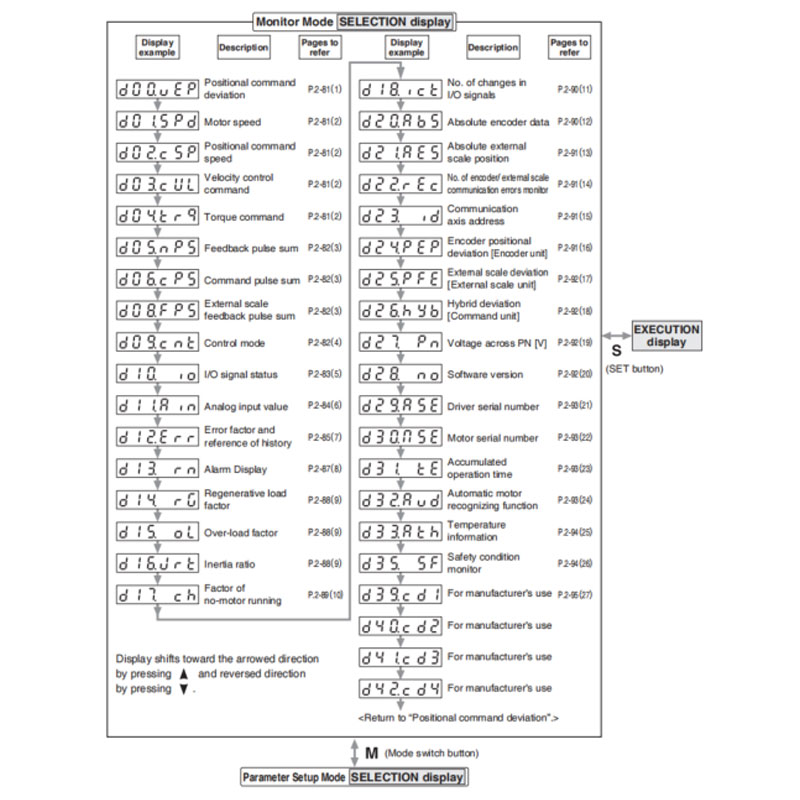

To change the monitor display setting, select the display option to be changed from " SELECTION display", and press S to change to " EXECUTION display". After completion of changing, press S to return to the selection display.

Note → When you turn on the Product for the first time, display show r 0. (at motor stall) To change this display, change the setup of Pr5.28 (Initial status of LED).

Best Buy Robotic Arm for Injection Molding Machine

SW6712

Unit: mm

X1	X2	X3	X4	Y	YM1	YM2	Z	L	W	H	Payload
1055	607	288	607	1200	420	780	1750	2340	1700	2460	8kg

The Application of End of Robotic Arm Tooling

EOAT Assembly Demonstration -- One Cavity In Mold Insertion EOAT With Mold Positioner

One Cavity In Mold Insertion EOAT With Mold Positioner

Product Descriptions

This EOAT is for One Cavity Parts Picking and In Mold Insertion;
The EOAT has Two Sides, One Side for Parts Picking, the Oter Side for In Mold Insertion;
The Parts Would be Picked by the Vacuum Cups and One Finger Angular Pneumatic Gripper;
The EOAT to be Drived by Three Air Circuits, One for the Cylinder, the Other for Finger Angular Pneumatic Gripper and the Third One for Mould Positioner;
The Gross Weight of the EOAT Seet is about 9kg.

Bom List

Product Name	PN #	Model	Quantity
Extruded Profiles	4.Y00481	PEP2525-1500	1
Plugs for Profile	4.Y00070	PEP2525	8
Mould Positioner	8.Y00088	GMP20A	3
Vacuum Cups VS2 Series	1.Y05310	VS2-SA20	2
Rotative Suspensions	8.Y00061	VFR1421-G18	2
Pneumatic Finger Gripper	8.Y00084	GFR14-95G	7
Extension Tube	7.Y00733	SMBY14-50	6
Mounting Bracket	7.Y00200-T	SMBE1-1440T	3
Cross Mounting Bracket for Profiles	7.Y00194-T	SMBA-2525T	4
Vacuum Cup Fittings	7.Y00703	VM02-G18	2

Q & A About Robotic Arms and Injection Automation

For a Container with a Height of 100mm, What Would be the Minimal Opening Stroke of the Injection Molding Machine?

As we know, for the IML production of a container, the robot will do the actions of parts picking and label inserting in the mold, which means that the system will request a much larger in mold space compared to non-IML production. While selecting an injection molding machine for your IML project, the opening stroke of the injection molding machine would be a very important parameter to be taken into consideration. The basic formular for the opening stoke caculation would be heigh of the parts x 3 + 150mm, the potential injection molding machine must have a larger opening stroke, or the robot may not able to pick the parts and insert the labels symtaneously.
