SAGMAX On Show Robotic Arm for Injection Molding with TWINTOP Two Platen Injection Molding Machine at Chinaplas 2025

High Performance Robotic Arms for Injection Molding

SAGMAX Robot on showed their telescopic arm 3 axis servo robotic arm for injection molding with TWINTOP two platen injection molding machine to demonstrate a turn-key solution of top entry IML for 20L paint pail at Chinaplas 2025.

Established in 2006, Dongguan Sigma Automation commit in the developing, manufacturing marketing of the robotic arms for injection molding which is sustiable for injection molding machine ranging with clamping force from 15~4000Tons. The products and solutions of Sigma Automation include:

The injection molding machine on show Chinaplas 2025 with SAGMAX TWINTOP is a new brand founded in 2021 specialized in the production of two-platen injection molding machine invested by Caifeng, the injection molding machine manufacturing company originated in Taiwan 40 years ago and moved to Wuxi, Jiansu province in 2006. The cooperating of TWINTOP and SAGMAX will provide a new option to producers of deep cavity containers.


Best Buy Robotic Arm for Injection Molding Machine
injection robot

SW6710S

injection robot

Unit: mm

X1 X2 X3 X4 Y YM1 YM2 Z L W H Payload
900 750 0 0 1000 420 580 1750 2780 1610 1930 8kg

The Application of End of Robotic Arm Tooling

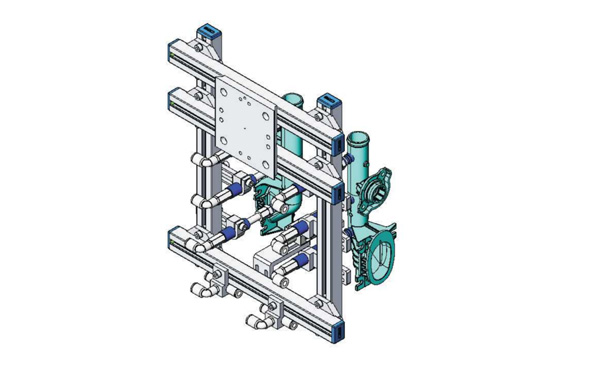

EOAT Assembly Demonstration -- One Cavity In Mold Insertion EOAT With Mold Positioner

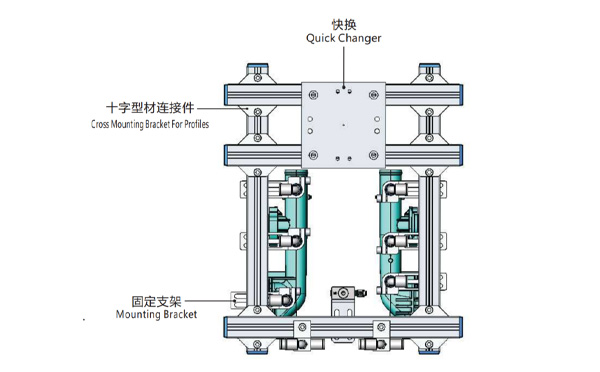

One Cavity In Mold Insertion EOAT With Mold Positioner

Product Descriptions

Bom List

Product Name PN # Model Quantity
Extruded Profiles 4.Y00481 PEP2525-1500 1
Plugs for Profile 4.Y00070 PEP2525 8
Mould Positioner 8.Y00088 GMP20A 3
Vacuum Cups VS2 Series 1.Y05310 VS2-SA20 2
Rotative Suspensions 8.Y00061 VFR1421-G18 2
Pneumatic Finger Gripper 8.Y00084 GFR14-95G 7
Extension Tube 7.Y00733 SMBY14-50 6
Mounting Bracket 7.Y00200-T SMBE1-1440T 3
Cross Mounting Bracket for Profiles 7.Y00194-T SMBA-2525T 4
Vacuum Cup Fittings 7.Y00703 VM02-G18 2

Q & A About Robotic Arms and Injection Automation

What's Would be the Most Economic Way to Produce An IML Bucket With Handle?

As one of the most popular food package in the market, an IML pail with handle is in demand of huge quantity but the assembly of the handle make it a labour entensive products. Is there any solutions that will make the production of an IML bucket with handle automatically? The answer would definitely yes.

One of the most economic way would be to have the pails and handle integrated into one single mold, it could be 2 + 2 or 4 + 4 design which the IML robot will pick the buckets and have the handles assembled automatically. With this solution, the IML buckets producer will only need one set of IML system to have the buckets and handle produced and assembled immediately.

IML Bucket Production System

2 Cavities Side Entry IML Buckets Solution with Handle Assembly

> It sounds great right, but what would be the productivity of such a system? In Chinaplas 2024 SWITEK cooperated with YIZUMI onshowed a 2 + 2 IML solution of 1L pails at the cycle time of around 7.5s. Generally the performance of the injection molding machine, the mold and the IML robot are all very important to make it a perfect IML system with handle assembly.

Fore more questions about your IML projects, please feel free to contact Adams from SWITEK, your personal consultant of IML technology.
